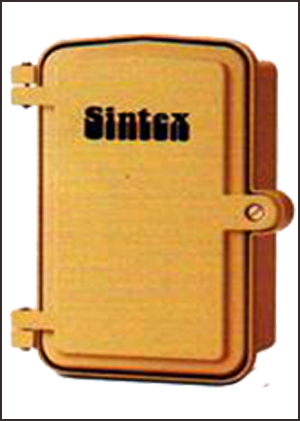

Junction Boxes

Junction Boxes, GI Junction Box, GI Junction Boxes, Manufacturer, Supplier, Exporter, Pune, Maharashtra, India, Indonesia, Bangladesh, Japan, Philippines, Bahrain, Iraq, United Arab Emirates, Kuwait, Nigeria, Ethiopia, Egypt, South Africa, Tanzania

Features :
  • Shockproof and rustproof
  • Rotproof and termite resistant
  • Cable entry from bottom and/or sides
  • 100% weatherproof
  • Pole mounting arrangement
  • Tamper proof
  • Pilferage proof
  • Restricts unauthorized tapping
  • Maintenance-free
  • Fire retardant - Class FV-0 as per IS:11731 Part-II or V-0 as per UL-94
  • High heat distortion temperature (200°C as per IS:10192)
Range & Specifications
Code No. Inside Dimensions
(mm) H x W x D
Applications
Side Hinged – Door fixed to base with hinges
GS-JB-1414 140 x 140 x 95 Junction box/cut-out box/fuse box for single
phase/2 core low wattage FTL/CFL based lighting system for pedestrian/pathway illumination.
GS-JB-2014 200 x 140 x 95 Pole mounted junction box/cut-out box/fuse
box for road/street lighting for 3 phase/4 core
high wattage HPSV/HPMV/MH based lighting
system for industrial applications.
GS-JB-2817 240 x 130 x 110
GS-JB-2520 250 x 200 x 105
GS-JB-3020[1]
(right hinged)
300 x 200 x 105
Top Hinged – Door fixed to base with hinges on top
GS-JB-1616-T 140 x 140 x 100 Junction box/cut-out box/fuse box for
single phase/2 core low wattage FTI/CFL
based lighting system for pedestrian/
pathway illumination.
GS-JB-3016-T 275 x 135 x 110 Pole mounted junction box/cut-out box/fuse
box for road/street lighting for 3 phase/4 core
high wattage HPSV/HPMV/MH based lighting
system for industrial, commercial as well as
flood lighting applications.
Sliding – Door fixed to base by means of sliding
CCV-400-01 340 x 160 x 90 Pole mounted junction box/cut-out box/fuse
box for road/street lighting for 3 phase/4 core
high wattage HPSV/HPMV/MH based lighting
system for industrial, commercial as well as
flood lighting applications. Provision for fixing 2
cut-outs, one for lighting and other for kiosks/
signage/emergency power supply.
Removable – Door fixed to the base by means of hardware
GS-JB-1510-R 55 x 100 x 60 Control terminal box/cut-out box
GS-JB-1816-R 185 x 165 x 60
GS-JB-2818-R 280 x 180 x 60
