Cable Trays: A Sustainable Solution to Manage the Clumsy Web of Wires and Cables

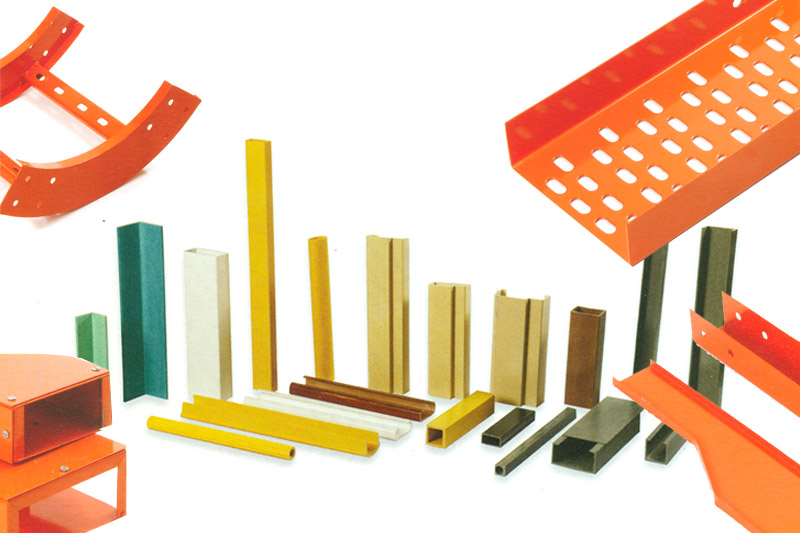

cable-trays-manufacturer
What are cable trays ?

Cable trays are rigid structures used to support and raceways the cables. The National Electrical Code (NEC) specifies the cable tray type to use. Cable trays are capable of supporting the following wiring variants, such as:

  • High voltage power lines
  • Power Distribution lines
  • Optical lines
  • Telecom and control lines

Cable tray wiring systems are the preferred wiring system when evaluated against equivalent conduit wiring systems in safety, reliability, space and cost. Cable Trays are the generally utilized wire managing framework used to help the messy trap of wires all through the various ventures.


Cable trays are of different kinds of material :

Aluminium trays are lightweight and used because of their high strength-to-weight ratio. The advantage of using aluminium is that it is maintenance-free.

Steel trays gives mechanical strength and low cost but has a high weight.

It has high mechanical strength and high ambient temperature. Stainless steel cable tray is roll-formed from AISI Type 316 stainless steel.

Cable Trays have multiple advantages according to the requirement specifications.
Advantages :

Cable tray costs a lot less than other methods of protecting wiring on the production floor.

The cable is instantly visible for maintenance checks. Changing is easy because they can enter or exit the tray at any point in the system.

Regular housekeeping is significant for safety, as cable trays installation takes place at complex places.

They take significantly less time to install and set up with wires.

This design allows for fewer parts to suspend the system. Also, it translates into cost savings and time savings.

If you are looking for the perfect solution to your requirement for Cable Trays, get in touch with Sharda Cable Trays Pvt Ltd!

Why Cable Tray Systems are considered Cost-effective for Cable Management ?

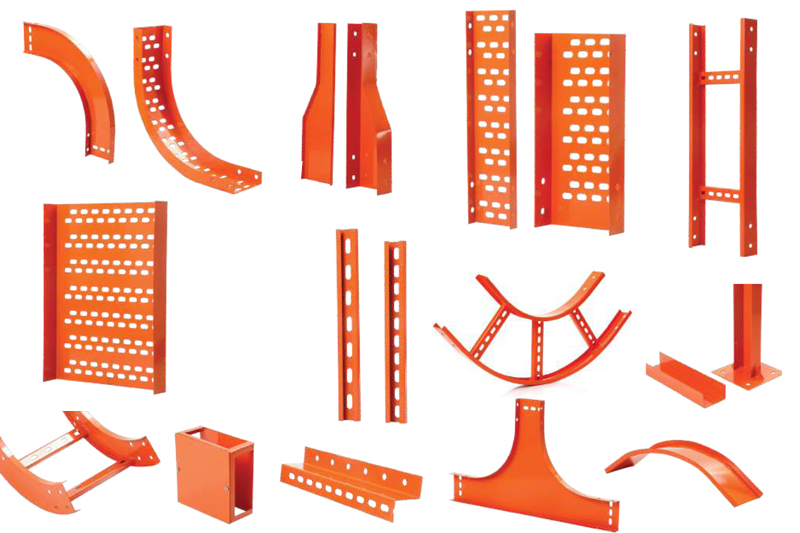

cabletray

In the electrical wirings, a cable tray system supports insulated electrical cables. Cables are for power distribution, control, and communication. Cable trays are an alternative to open wiring or electrical conduit systems. The common application of cable management takes place in commercial and industrial construction. They are useful when changes to a wiring system anticipate since new cables can be installed by laying them in the tray instead of pulling them through a pipe.

Cable Tray Systems have several advantages :

  • Reliable
  • Dependable
  • More adaptable to the changing needs.
  • Easy to install
  • Easy to maintain
  • Cost-effective



Cost is usually a significant consideration in the selection of a wiring system. Cost and features are two vital elements that help decide the best suitable cable tray systems. The evaluations should relate to cost, dependability, future changes, maintenance, safety, and space savings.

Selecting the required cable tray systems and designing them according to the requirements is the first step. Specifying quality materials is the second notable step. Planning and executing installation activities is the final step. In all these steps, cost-effectiveness is the prime point to consider.

Design Cost Savings :

In progress through the design phase, the operating basics and safety measurements are developed and carried out. The revisions required to meet requirements occur all through the design cycle and even into the initial phases. The cost and time to cope with changes during the engineering and design phases will be far lesser for a cable tray wiring system than for an equivalent alternative system.

Material Procurement Cost Savings :

There are fewer different components in a cable tray wiring system than in an alternative cable tray system. Fewer components signify savings. The cost of the cable trays supports and miscellaneous items can help save up to 80 percent. Excluding the overheads, this is in comparison with the alternative wiring systems. The NEC fill capacity for an 18-inch wide ladder or ventilated trough cable tray is 21 square inches. It takes seven 3-inch conduits to match that fill capacity.

Installation Cost Savings :

Comparatively, installation of cable tray systems requires lesser time. The best section to save the costs in the cable tray systems is the installation. Additionally, the installation speed is faster. The components required in the installation process are less in number. The installation process of cable systems requires less labour if compared with other types of wiring systems.

Maintenance Cost Savings :

The cables can enter or exit the cable tray anywhere along the route. The unique feature allows maintenance at the lowest possible future cost.

Cable tray wiring systems have significant cost savings advantages over conduit wiring systems. They also have convenience, dependability, and safety advantages over conduit wiring systems.

For the best Cable Tray Systems, get in touch with Sharda Cable Trays Pvt Ltd.
